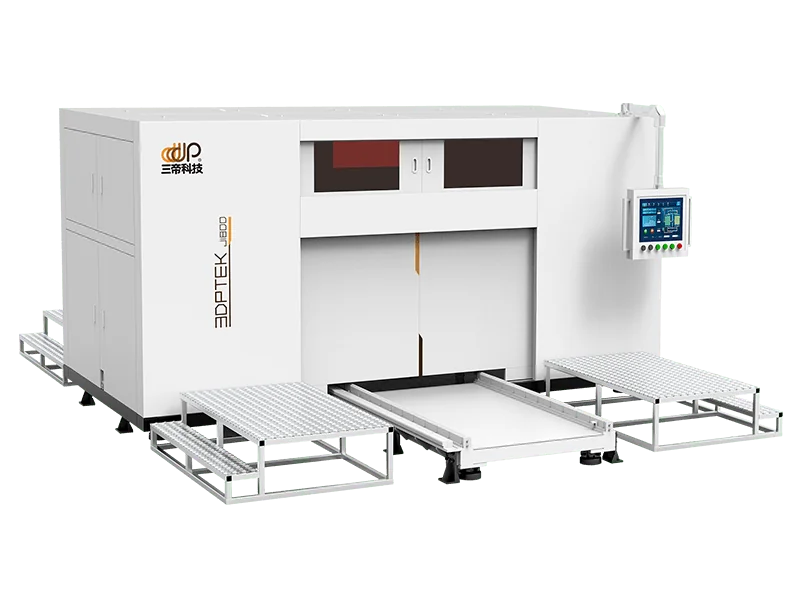

3DPTEK-J1800 Binder Jet Sand 3D Printer Details

3DP Sand 3D Printer: 3DPTEK-J1800

  • Core components are all high-end configuration, to ensure that the equipment is stable, reliable, low maintenance costs;
  • With nozzle internal circulation and automatic cleaning function, it is not easy to be clogged by adhesives;
  • The orbital molding cylinder is automatically pushed out with one key, and the pieces are picked up outside the machine, realizing the equipment's non-stop assembly line-type cycle operation.
Online Inquiry

3DPTEK-J1800 Equipment Introduction

The company's self-developed 3DP sand printer 3DPTEK-J1800, using the latest generation of high-speed vibration powder laying technology (HSVC 9.0 mute), with high-performance molding process and intelligent algorithms technology, has a fast running speed, easy to operate, with the molding of large sizes, high printing efficiency, high precision and strength of sand molding compared with the traditional process, and a wide range of applications. The fastest printing speed can reach 15s/layer, the highest molding accuracy can reach ±0.3mm, the highest printing efficiency can reach 153L/h, the maximum molding weight ≥1.3 tons. Applicable to large size, small and medium batch sand mold production, suitable for the research and development of prototype manufacturing as well as small and medium batch casting production.

Equipment parameters

设备型号
3DPTEK-J1800
设备主体尺寸
6650×4470×3450mm
成型缸尺寸
1860×1060×730mm
最大成型尺寸
1800×1000×700mm
设备重量
Approx. 13T
喷头分辨率
400dpi
成型厚度
0.2-0.5mm
成型材料
石英砂/陶粒砂/宝珠砂等

Sample display

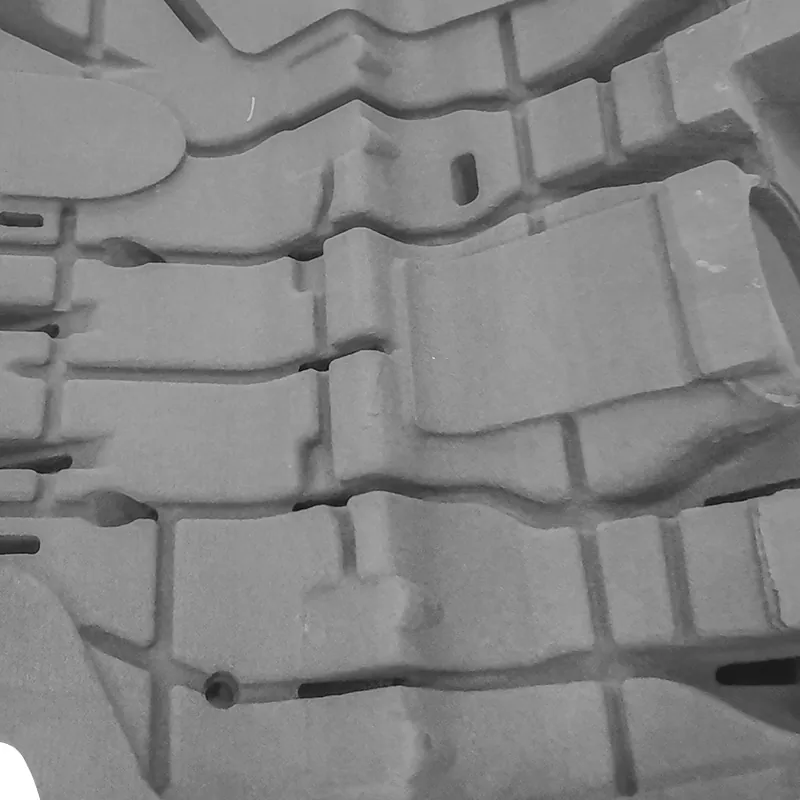

Auto parts sand mold

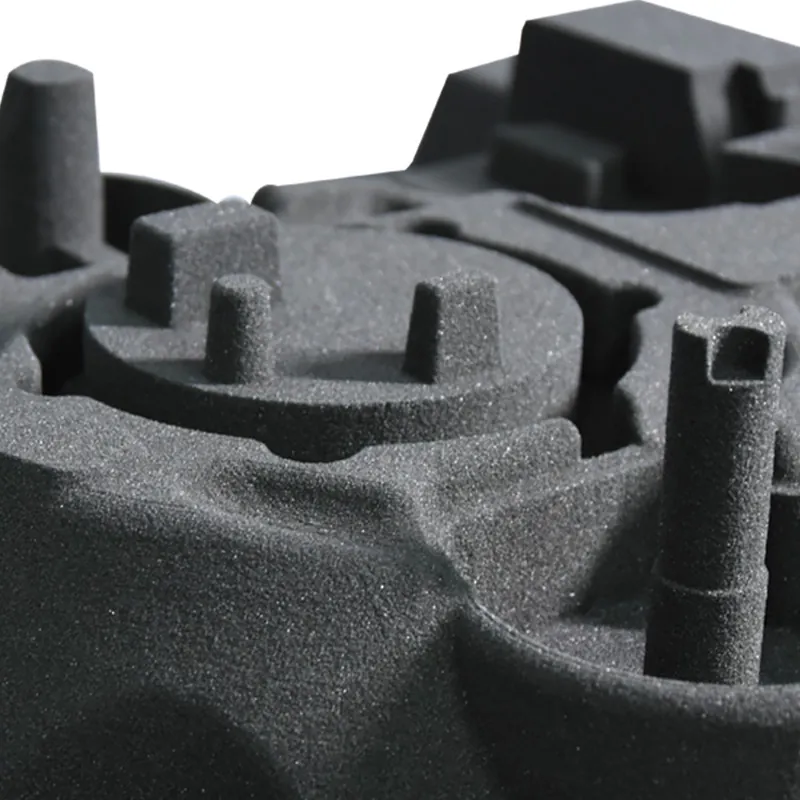

Aerospace sand molds

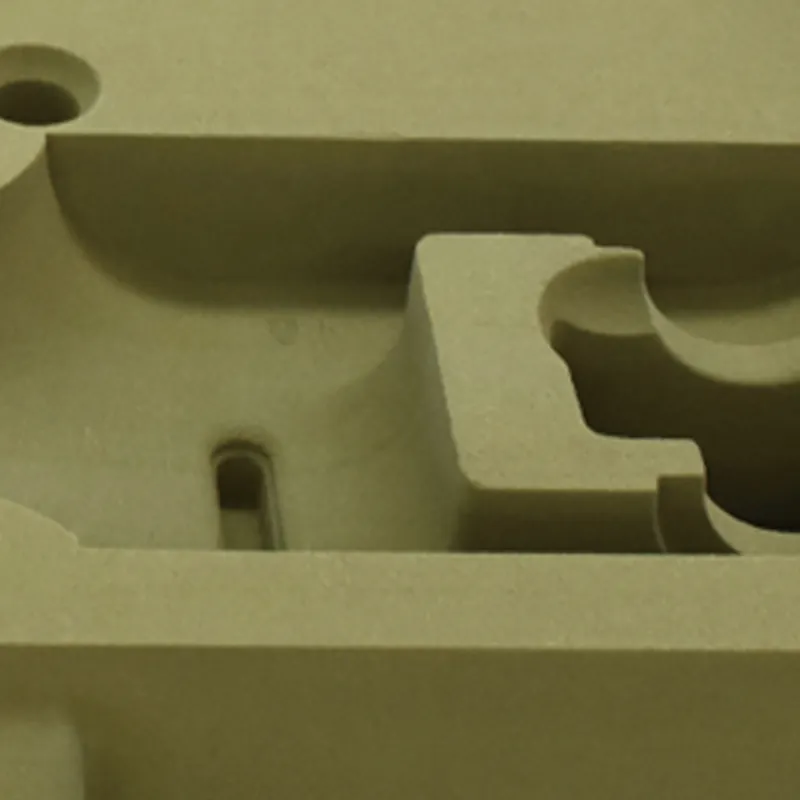

Industrial machinery sand mold

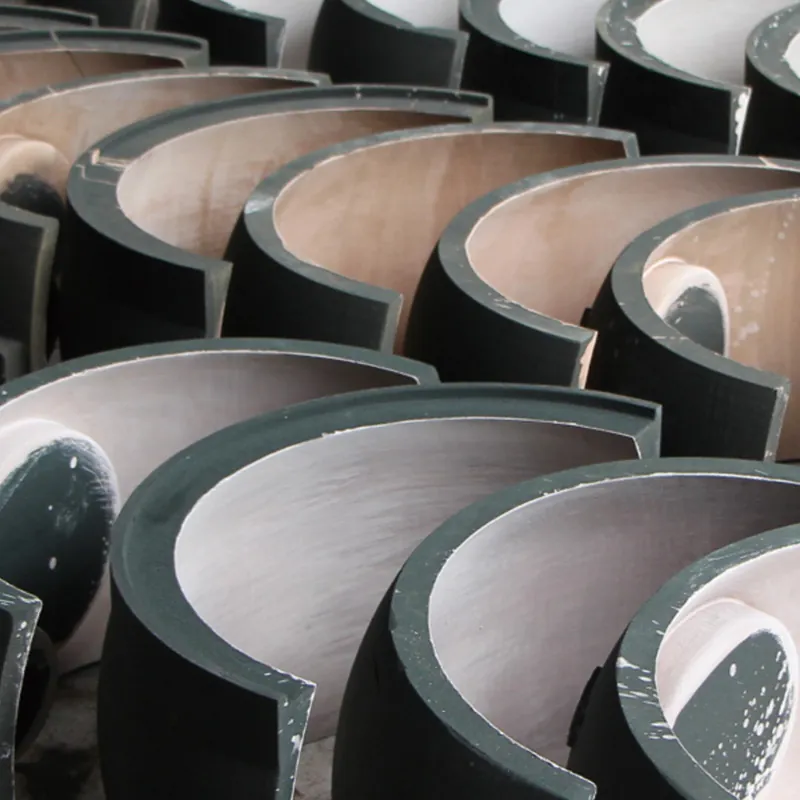

High-voltage electrical sand mold

Application Areas
